NOAA APT Satellites

The NOAA weather satellites are some of the easiest satellites to receive. For an excellent article see RTL-SDR Tutorial: Receiving NOAA Weather Satellite Images.

The NOAA satellites and APT frequencies are:

Satellite   Frequency
NOAA 15     137.6200 MHz
NOAA 18     137.9125 MHz
NOAA 19     137.1000 MHz

The recommended steps are:
  1. Install WXtoImg
  2. Install a virtual audio cable (VAC), either VB-Audio or Virtual Audio Cable
    • Select this device in the console (Receive DSP pane) and
    • WXtoImg recording Options
  3. In the satellite tracking window select a NOAA satellite (see the table above),
    • Add to the satellite list
    • Define the RX frequency with the Organise option
  4. in the Passes window press Current to display the passes for the currently selected satellite

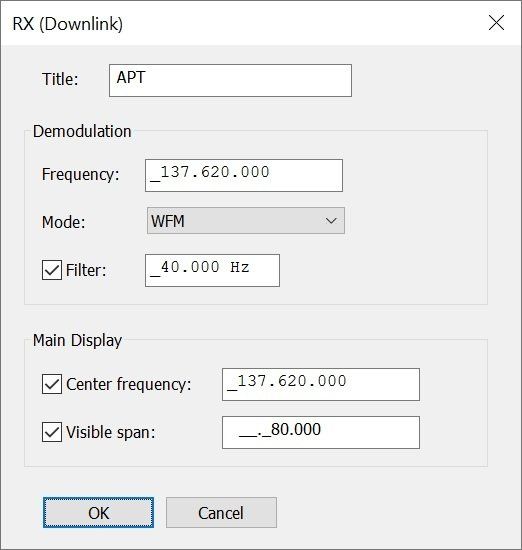

An example of a APT frequency definition is shown below, note the mode is WFM (wide FM) which must be used here, the recommended filter width is 40 kHz:

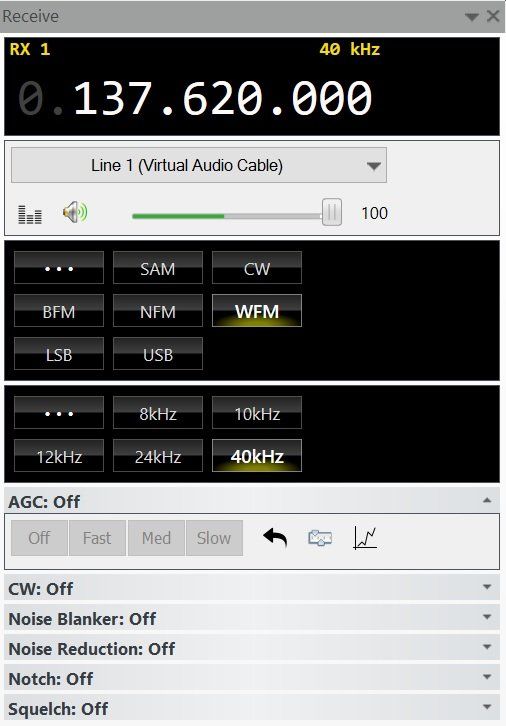

When applied to the console the Receive DSP pane shows the values below, make sure:
  • Mode is WFM (wide FM)
  • Virtual Audio Cable (VAC) is selected
  • Volume level is 100
  • Filter width is 40 kHz
  • Squelch is Off
  • Notch filter is off

WXToImg Settings

The essential WXtoImg steps are shown below.

Kepler Data Update

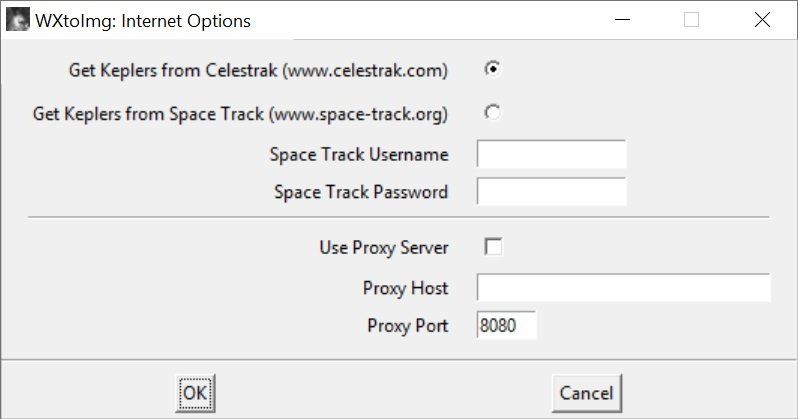

From the File menu select Update Keplers - this loads the latest data from the sites configured in WXtoImg, this is usually celestrak.com.

Recording Options

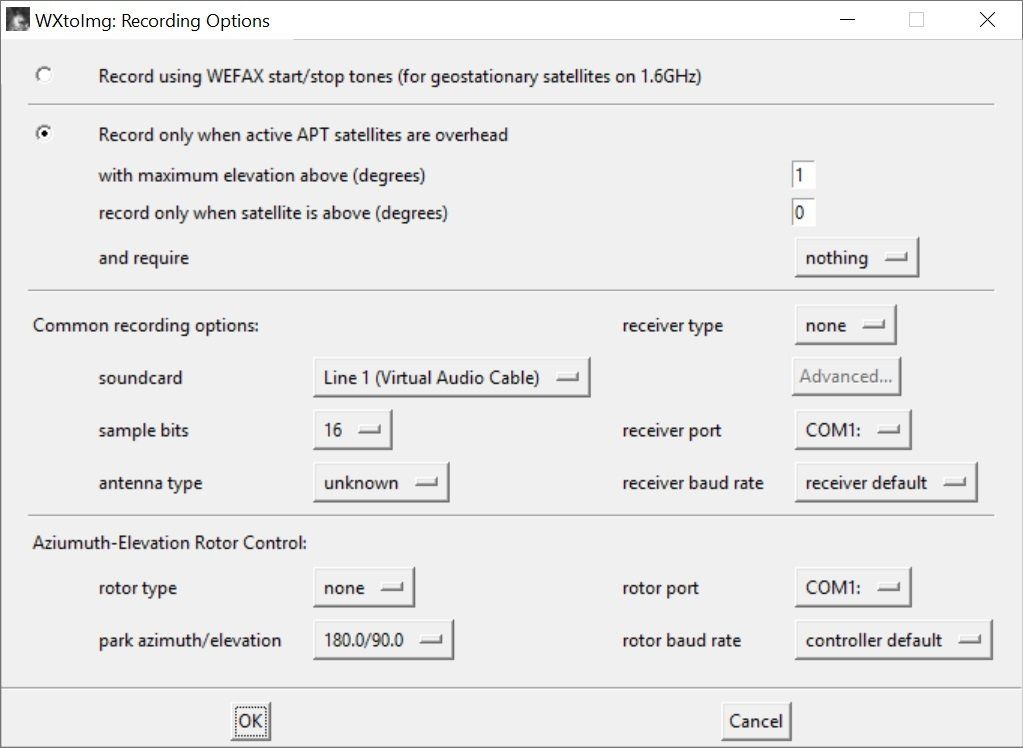

From the Options menu select Recording Options. Here you must select the same virtual audio cable configured in the SDR Console, in this example Line 1 (Virtual Audio Cable). The name depends on the VAC program you have installed. You must select the same device in the Receive DSP pane of the console.

Recording

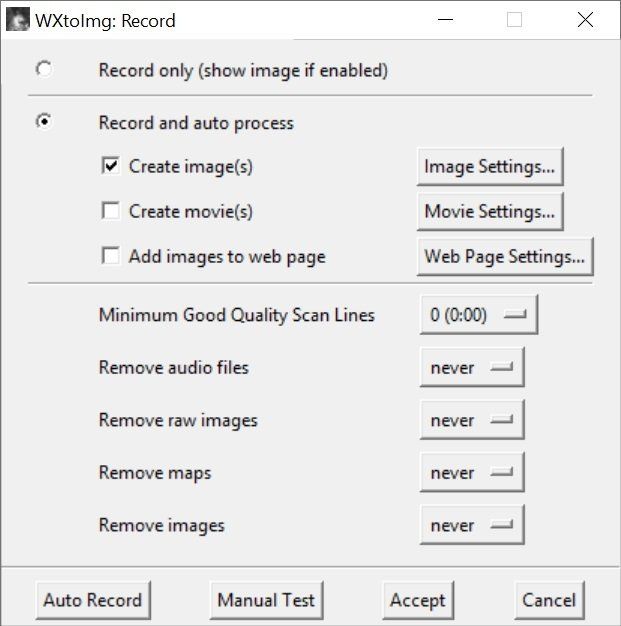

From the File menu select Record, select Record and auto process then press Auto Record.

APT Signal And Image

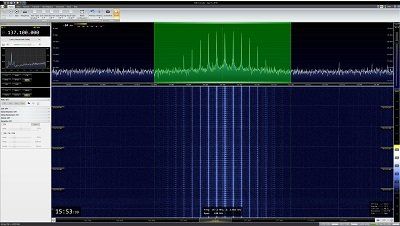

When you are receiving a signal the display in the console will be similar to the image here, recommended settings are:
  • Mode WFM (wide FM)
  • Virtual Audio Cable (VAC) selected
  • Volume level is 100
  • Filter wdith 40 kHz
  • Squelch Off
  • Notch filter off

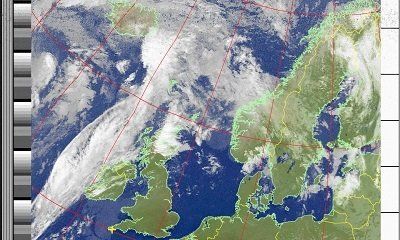

Assuming you are piping the audio via a VAC to WXtoImg your resulting image will be something like this once the recording has finished and WXtoImg has processed the data:

Antennas

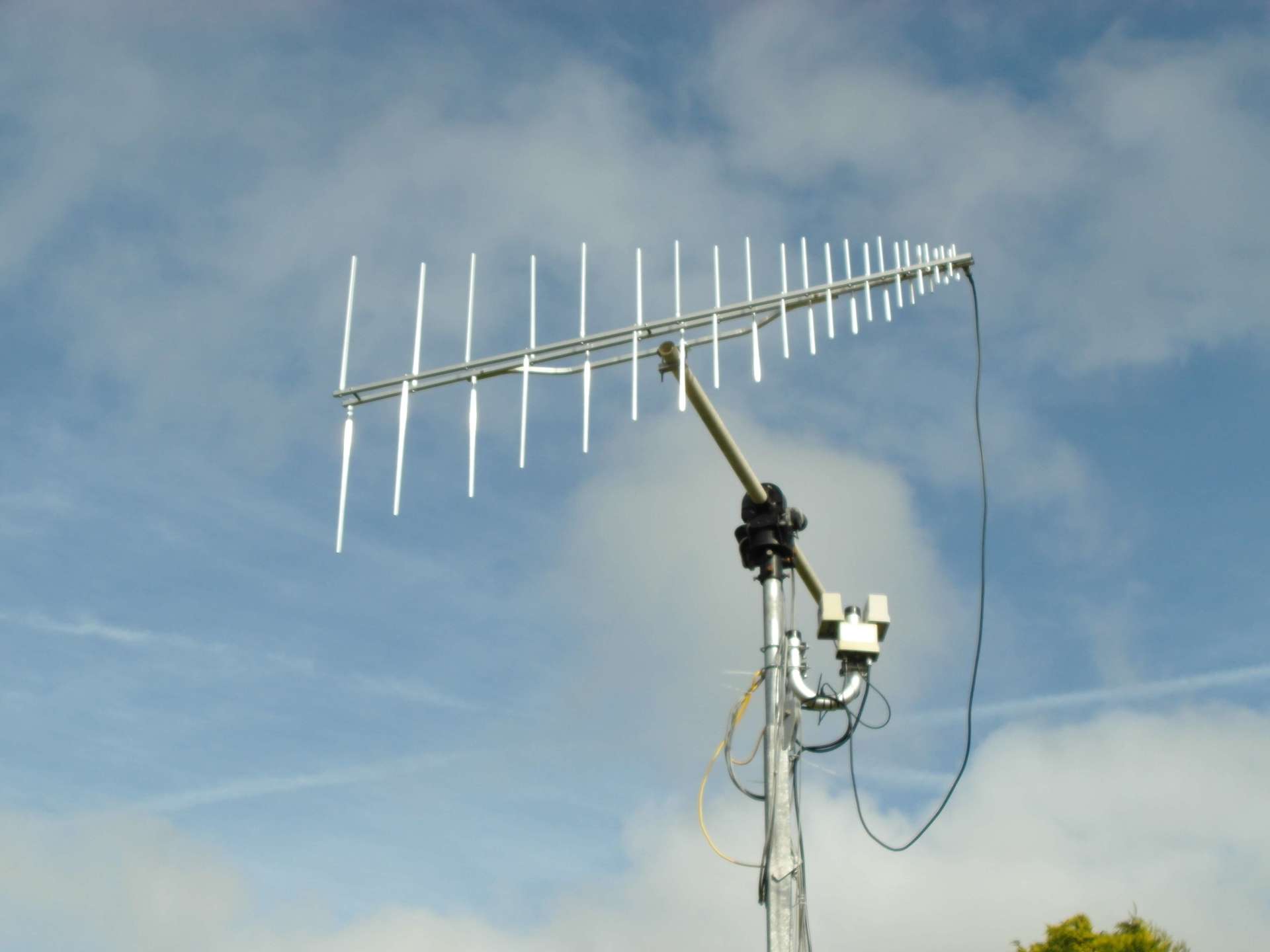

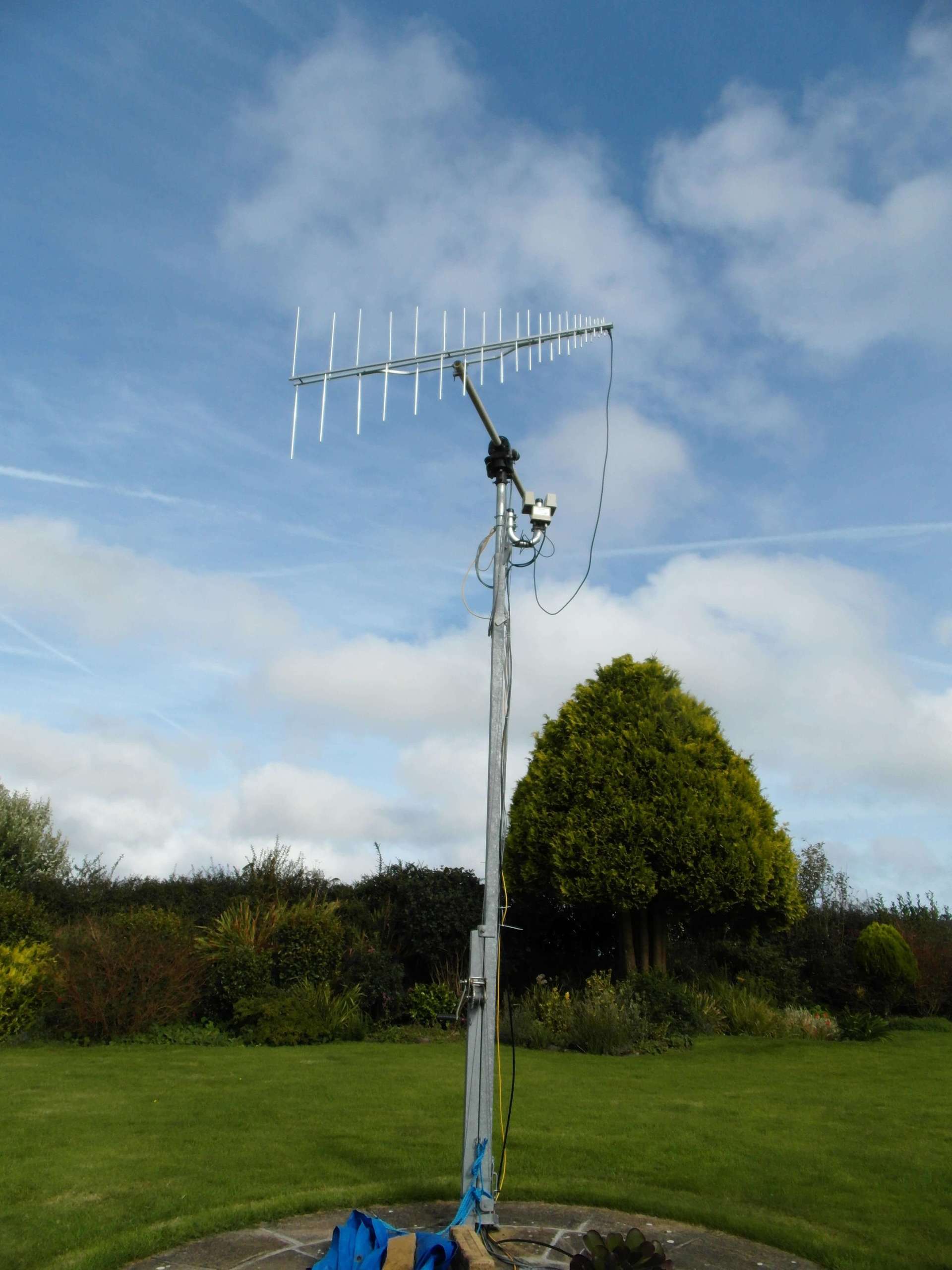

For general-purpose satellite reception a log periodic from WIMO is used, see http://www.wimo.com/logarithmic-periodic-vhf-antennas_e.html model FULL. Here are a couple of photos, the rotator is an alfaSPID with Green Heron controller, the masthead pre-amp from SSB Electronics is the LNA 5000.
